830 tie-points Prototyping Circuit Board & Experiment Breadboard 16.6*5.5*0.85cm
Description:
1Terminal Strip:Tie-point 630
2Distribution Strips:Tie-point 200
Material:ABS plastic
All material Rohs compliance
Low cost, high reliability
Completely reusable
Specifications:
| Item Number | ZY-201 |
| 1 Terminal Strip | 630 points |
| 2Distribution Strips | 200 points |
| Board Size | 16.5x3.5x0.85 (cm) |
| Metal Plate | 18.5x11x0.12 (cm) |
| Binding Posts | 3 |
| Package | skin package or paper box |
| color | white breadboard, black Alum plate |

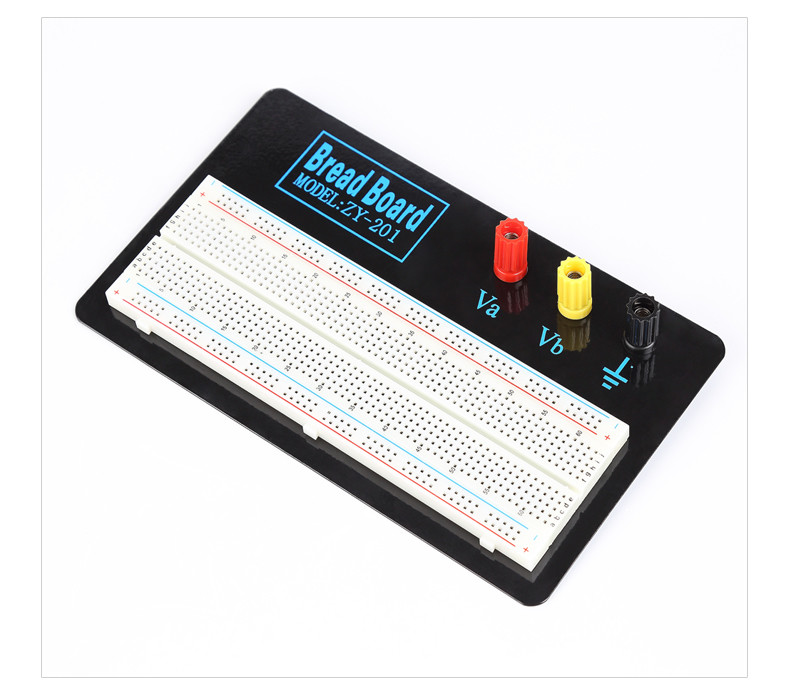

This is the simplest breadboard with black plate, only a prototype board on it. The construction is clear. This one is convenient for small scale experment.
Connect circuit as the above picture. Then connect the wire to the binding post, last pick another wire to connect the power supply. Once touch the power, the led light will be lighted.
From this small experiment, you can see that if you want the near rows connected, you must use led light and wire. Of course, according to your own need, you can choose other electronic components to instead.
Connect circuit as the above picture, once power connected, the led light will be lighted. In this experiment, you can find that if you need the above five-hole row connect with the below five-hole row, you must need wire and led right.
Packaging & Shipping
About package, first, the breadboard will adopt skin package. Second, 50 pieces of ZY-201 will be packed into a carton box. Of course, this is our ordinary package. According to different shipping way, we will adopt the most suitable way.
Below is the detailed packing information:
| Item No. | G.W. (KG) | N.W. (KG) | Quantity (pcs) | Measuremnt (cm) |
| ZY-201 | 12.5 | 11.5 | 50 | 35×34×30 |
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. Safe Shipping Way and Payment
Product Image:
