Phoenix Terminal Blocks Two Way Screw HQ128A Electric

Name: Phoenix Terminal Blocks Two Way Screw HQ128A Electric
Brand: ZHONGYI
Price: 0.1 USD

China Phoenix Terminal Blocks Two Way Screw HQ128A Electric wholesale

Brand Name : ZHONGYI

Model Number : HQ128A

Place of Origin : China

MOQ : 100pcs

Price : $0.1~$1 ＞100pcs

Payment Terms : T/T

Supply Ability : 10000pcs/week

Delivery Time : 1-3 work days

Packaging Details : carton box

Pitch : 3.5mm/3.81mm/5.0mm/5.08mm

Poles : 2*(2P.3P)

Screws : M2.0.M2.5.Steel.Zinc plated

Wire guard : Brass.Ni plated

Pin header : Brass. Tin plated

Housing : PA66.UL94V-0

Contact Now

Phoenix Terminal Blocks Two Way Screw Terminal Block Connector HQ128A Wire Connector Electric Terminal Block

Electrical

Rated voltage	300V
Rated current	10A
Withstanding voltage	AC1500V/1Min
Wire range	26-16AWG/24-12AWG

Mechnical

Temp range	-40℃~+105℃
Max soldering	+250℃ 5 Sec
Torque	0.4Nm(3.6Lbin)
Strip length	5~6mm/6~7mm

Remarks:
 The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.

Customized service:

LOGO, please send us your logo,we can put it on the product.
 Packing, we accept customer's package,if you have specific requirement,please tell us.
 ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.

Features:

The screw terminal is firmly connected.

It can connect all types of wires with cross section from 0.08㎡ to 25.0㎡.

Pitch from 2.54mm to 15.0mm is available.

Phoenix Terminal Blocks Two Way Screw HQ128A Electric

Product Tags:

300V 10A Phoenix Terminal Blocks

Two Way Screw Phoenix Terminal Blocks

Electric PCB Screw Terminal Block

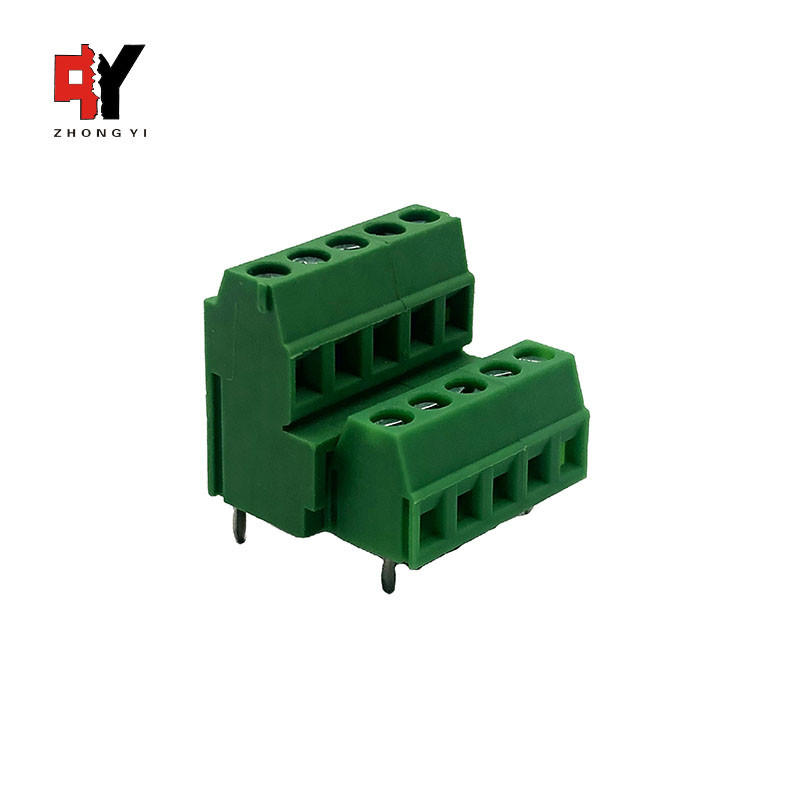

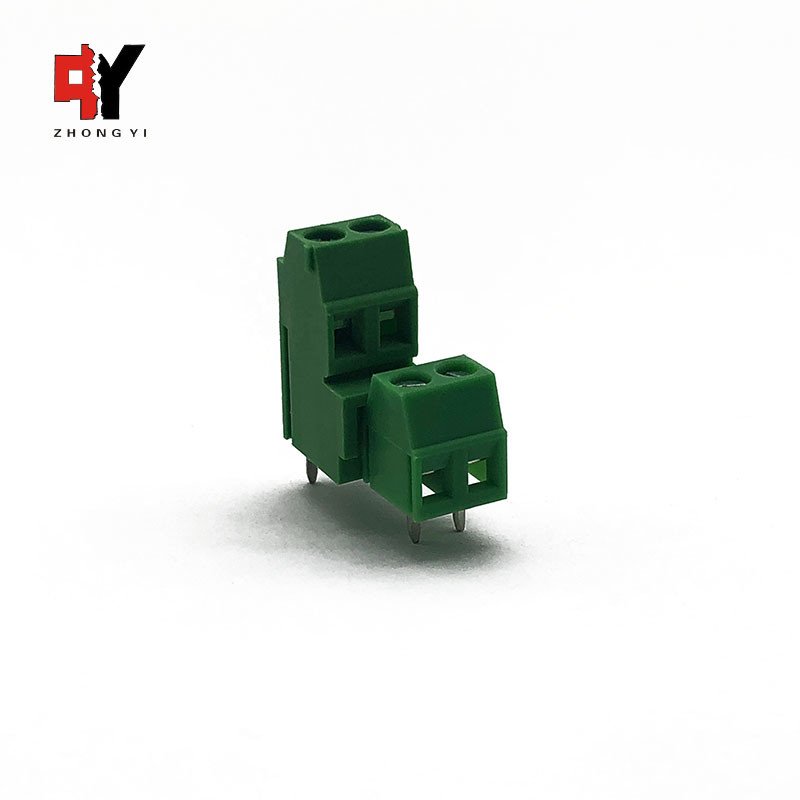

Phoenix Terminal Blocks Two Way Screw HQ128A Electric Images
